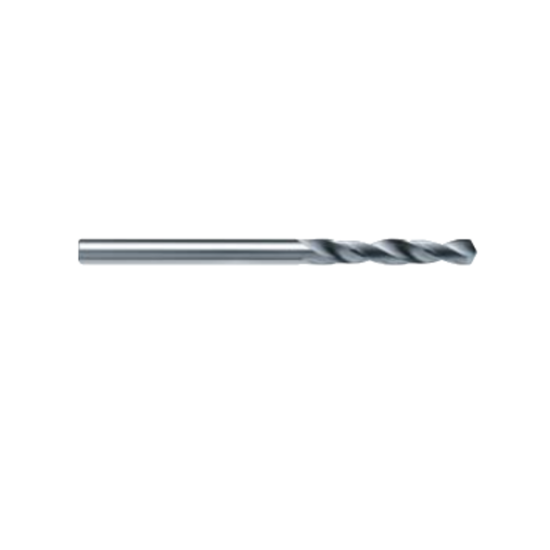

HAM TFR300-0250 2.50mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR300-0250
Delivery date: 3-5 days
$7.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Made In USA No
Shipping State Toronto
Package Size 1
Dimensional Specifications
Overall Len 1.5748 40.00MM
Cut Dia Min 0.0984 2.50MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 0.7090 18.01MM
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.0984 2.50MM
Machine Side Connection Size 0.0984 2.50MM
Shank/Pilot Dia 0.0984 2.50MM
Flutes/Inserts 2
Included Angle 120°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
