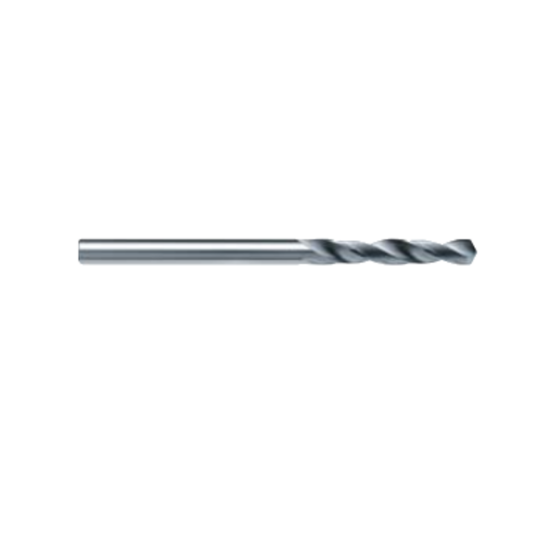

HAM TFR300-0150 1.50mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR300-0150
Delivery date: 3-5 days
$5.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Toronto
Application Drilling Flood Coolant, Dilling
Made In USA No
Dimensional Specifications
Cutter Dia 0.0591 1.50MM
Shank/Pilot Dia 0.0591 1.50MM
Included Angle 120°
Cut Dia Min 0.0591 1.50MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.1811 30.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.0591 1.50MM
Flute Length 0.5120 13.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
