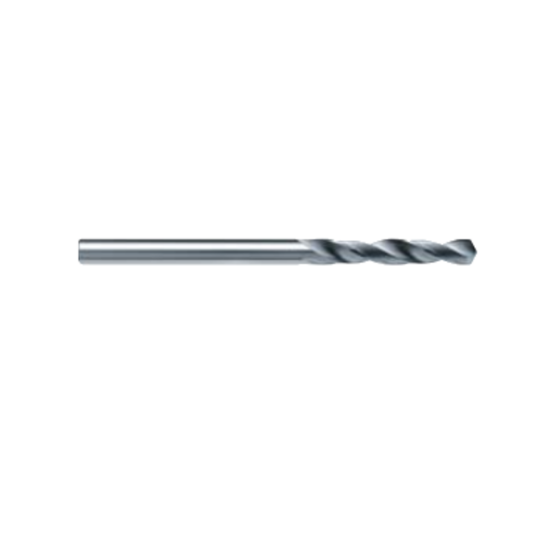

HAM TFR300-0115 1.15mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR300-0115
Delivery date: 3-5 days
$5.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Toronto
Package Size 1
Application Drilling Flood Coolant, Dilling
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.0453 1.15MM
Overall Len 1.1811 30.00MM
Included Angle 120°
Cut Dia Min 0.0453 1.15MM
Machine Side Connection Size 0.0453 1.15MM
Flutes/Inserts 2
Cut Rating Aluminum, Brass, Plastic, Copper
Flute Length 0.5120 13.00MM
Cutter Dia 0.0453 1.15MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
