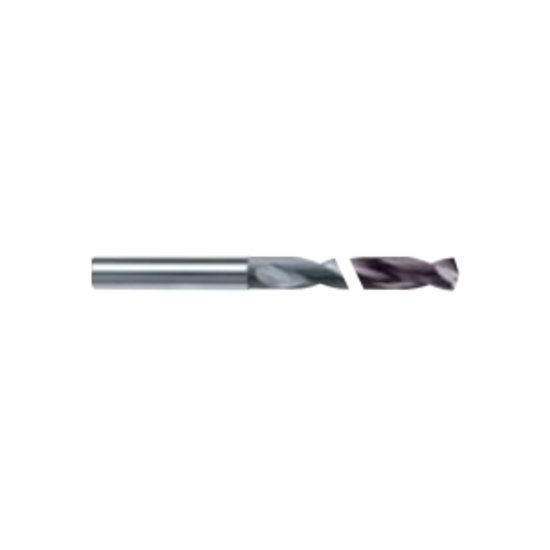

Picture of HAM TFR30-2381-1111 TA-C 7/16" 15XD Solid Carbide Deep Hole Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR30-2381-1111 TA-C 7/16" 15XD Solid Carbide Deep Hole Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR30-2381-1111 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1128869
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HAM 30-2381-1111 TA-C Carbide Drill Cylindrical 0.4724 TA-C 0.4375 11.11MM - 7/16Cutter Dia 7.4410 189.00MM 15.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.4724 12.00MM
Overall Length 9.4488 240.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Type Of Tool Drill
Flute Length 7.4410 189.00MM
Cut Dia Min 0.4375 11.11MM - 7/16
Dia Deep 15.0x Dia
