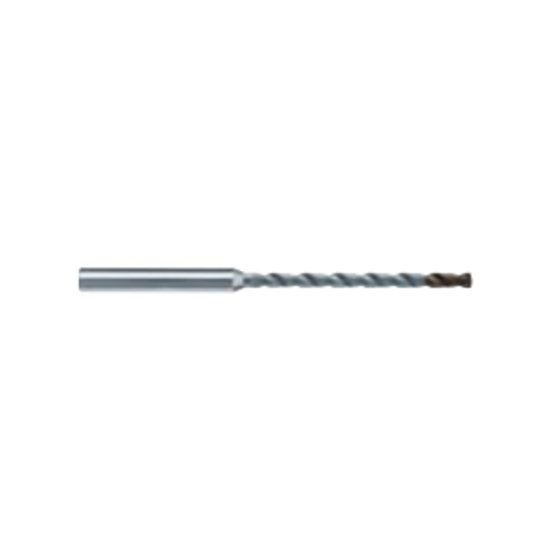

Picture of HAM TFR30-2301-0280 2.80mm 15XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

HAM TFR30-2301-0280 2.80mm 15XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

Part Number: TFR30-2301-0280

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1128715
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HAM 30-2301-0280 Carbide Drill Cylindrical 0.1181 TA 0.1102 2.80MM Cutter Dia 1.8190 46.20MM 15.0XD Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TA
Mach Side Connection Size 0.1181 3.00MM
Overall Length 3.2283 82.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.1102 2.80MM
Type Of Tool Drill
Included Angle 135°
Flute Length 1.8190 46.20MM
Cut Dia Min 0.1102 2.80MM
Dia Deep 15.0x Dia
