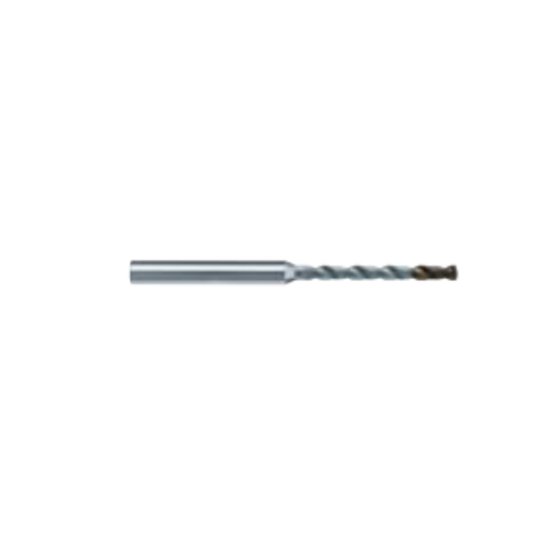

Picture of HAM TFR30-2261-0300 3.00mm 12XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

HAM TFR30-2261-0300 3.00mm 12XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

Part Number: TFR30-2261-0300

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1128674
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HAM 30-2261-0300 Carbide Drill Cylindrical 0.1181 TA 0.1181 3.00MM Cutter Dia 1.5940 40.49MM 12.0XD Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TA
Mach Side Connection Size 0.1181 3.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.1181 3.00MM
Type Of Tool Drill
Included Angle 135°
Flute Length 1.5940 40.49MM
Cut Dia Min 0.1181 3.00MM
Dia Deep 12.0x Dia
