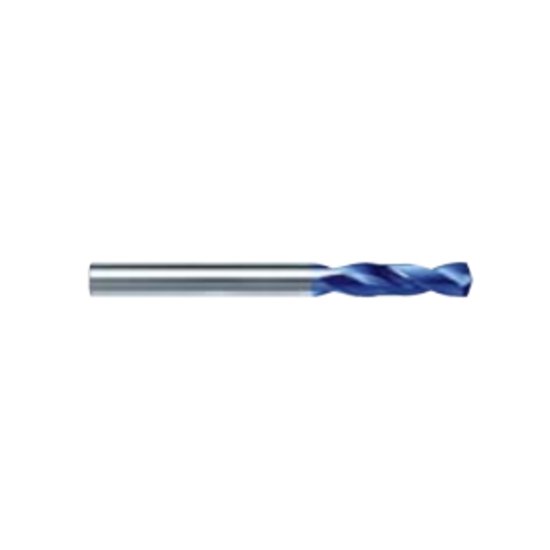

Picture of HAM TFR30-1891-1520 TA-CN 15.20mm 3XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Non-Coolant

HAM TFR30-1891-1520 TA-CN 15.20mm 3XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Non-Coolant

Part Number: TFR30-1891-1520 TA-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1130295
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HAM 30-1891-1520 TA-CN Carbide Drill Cylindrical 0.6299 TA-CN 0.5984 15.20MM Cutter Dia 2.5590 65.00MM 3.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Stainless Steel, High Temp
Coating TA-CN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 4.5276 115.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5984 15.20MM
Type Of Tool Drill
Included Angle 140°
Flute Length 2.5590 65.00MM
Cut Dia Min 0.5984 15.20MM
Dia Deep 3.0x Dia
