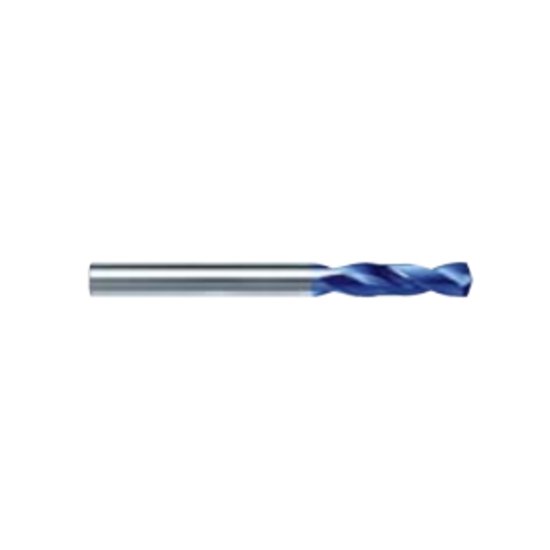

Picture of HAM TFR30-1891-1210 TA-CN 12.10mm 3XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Non-Coolant

HAM TFR30-1891-1210 TA-CN 12.10mm 3XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Non-Coolant

Part Number: TFR30-1891-1210 TA-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1130256
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HAM 30-1891-1210 TA-CN Carbide Drill Cylindrical 0.5512 TA-CN 0.4764 12.10MM Cutter Dia 2.3620 59.99MM 3.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Stainless Steel, High Temp
Coating TA-CN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 4.2126 107.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.4764 12.10MM
Type Of Tool Drill
Included Angle 140°
Flute Length 2.3620 59.99MM
Cut Dia Min 0.4764 12.10MM
Dia Deep 3.0x Dia
