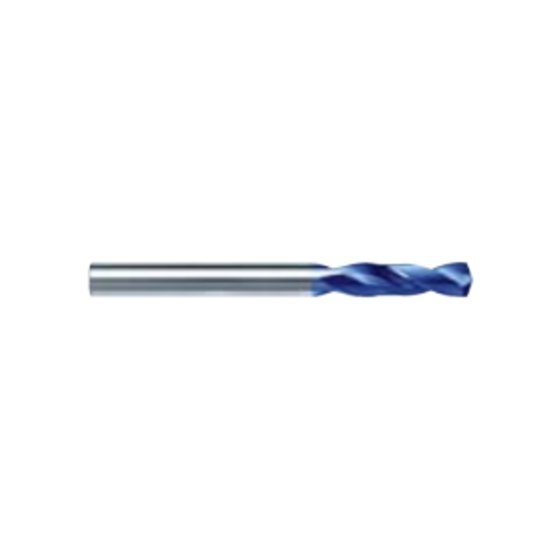

Picture of HAM TFR30-1891-0270 TA-CN 2.70mm 3XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Non-Coolant

HAM TFR30-1891-0270 TA-CN 2.70mm 3XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Non-Coolant

Part Number: TFR30-1891-0270 TA-CN
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1127820
Vendor: Sussex Tool and Supply
$49.15

Description

HAM 30-1891-0270 TA-CN Carbide Drill Shank 0.2362 TA-CN 0.1063 2.70MM Drill Dia 0.7870 19.99MM 3.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1063 2.70MM
Flute Length 0.7870 19.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp
Cut Dia Min 0.1063 2.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-CN
