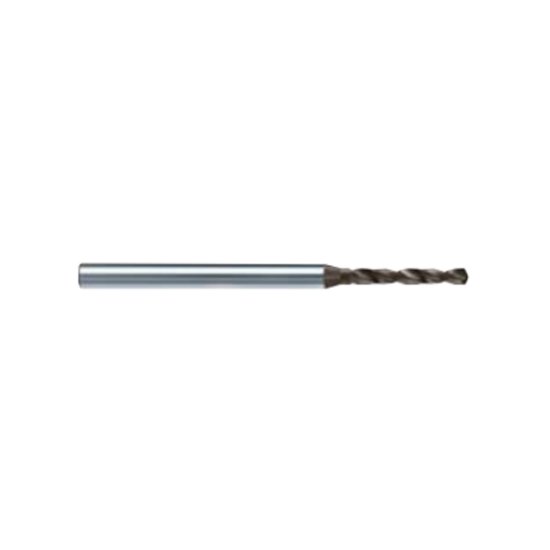

Picture of HAM TFR30-1301-0270 TA 2.70mm Solid Carbide Twist Drill, 2 Flutes, TA Coated, Non-Coolant

HAM TFR30-1301-0270 TA 2.70mm Solid Carbide Twist Drill, 2 Flutes, TA Coated, Non-Coolant

Part Number: TFR30-1301-0270 TA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1126676
Vendor: Sussex Tool and Supply
$52.00
HAM 30-1301-0270 TA Carbide Drill Shank 0.1574 TA 0.1063 2.70MM Drill Dia 0.8270 21.01MM Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating TA
Mach Side Connection Size 0.1575 4.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.1063 2.70MM
Type Of Tool Drill
Included Angle 140°
Flute Length 0.8270 21.01MM
Cut Dia Min 0.1063 2.70MM
