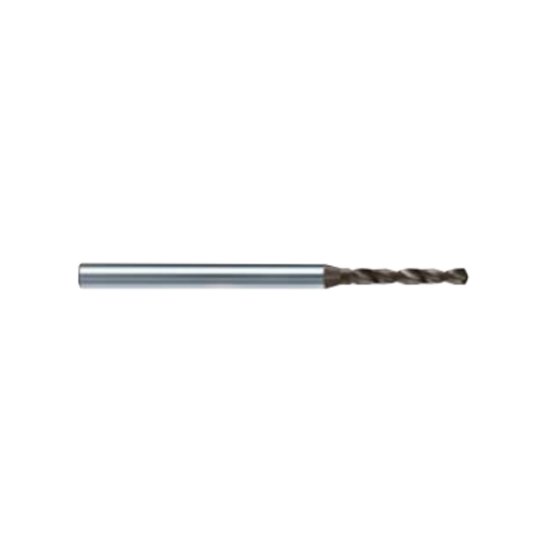

Picture of HAM TFR30-1301-0255 TA 2.55mm Solid Carbide Twist Drill, 2 Flutes, TA Coated, Non-Coolant

HAM TFR30-1301-0255 TA 2.55mm Solid Carbide Twist Drill, 2 Flutes, TA Coated, Non-Coolant

Part Number: TFR30-1301-0255 TA
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1126673
Vendor: Sussex Tool and Supply
$52.00

Description

HAM 30-1301-0255 TA Carbide Drill Shank 0.1574 TA 0.1004 2.55MM Drill Dia 0.7680 19.51MM Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.1004 2.55MM
Flute Length 0.7680 19.51MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.1004 2.55MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA
