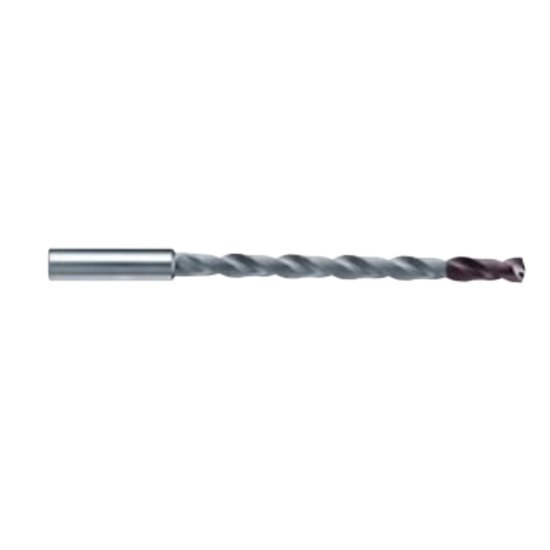

Picture of HAM TFR293-1032 TA-C 13/32" 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR293-1032 TA-C 13/32" 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR293-1032 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127635
Vendor: Sussex Tool and Supply
$501.10
HAM 293-1032 TA-C Carbide Drill Shank 0.4724 TA-C 0.4063 10.32MM - 13/32Drill Dia 6.1420 156.01MM 12.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.4724 12.00MM
Overall Length 8.0315 204.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4062 10.32MM - 13/32
Type Of Tool Drill
Included Angle 140°
Flute Length 6.1420 156.01MM
Cut Dia Min 0.4063 10.32MM - 13/32
Dia Deep 12.0x Dia
