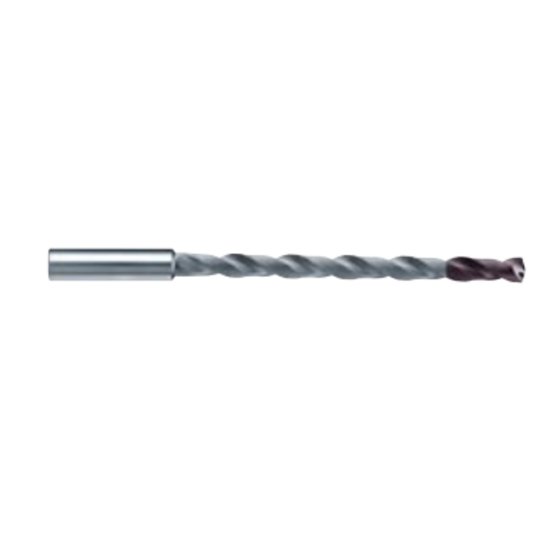

Picture of HAM TFR293-0820 TA-C 8.20mm 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR293-0820 TA-C 8.20mm 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR293-0820 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127607
Vendor: Sussex Tool and Supply
$373.10
HAM 293-0820 TA-C Carbide Drill Shank 0.3937 TA-C 0.3228 8.20MM Drill Dia 4.7240 119.99MM 12.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.3937 10.00MM
Overall Length 6.3780 162.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3228 8.20MM
Type Of Tool Drill
Included Angle 140°
Flute Length 4.7240 119.99MM
Cut Dia Min 0.3228 8.20MM
Dia Deep 12.0x Dia
