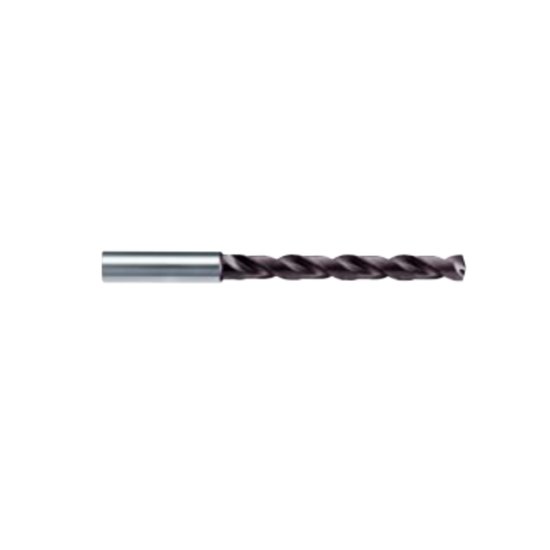

Picture of HAM TFR292-0635 TA-C 1/4" 8XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR292-0635 TA-C 1/4" 8XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR292-0635 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127401
Vendor: Sussex Tool and Supply
$202.50
HAM 292-0635 TA-C Carbide Drill Shank 0.3150 TA-C 0.2500 6.35MM - 1/4 - EDrill Dia 2.9920 76.00MM 8.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.3150 8.00MM
Overall Length 4.4882 114.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Type Of Tool Drill
Included Angle 140°
Flute Length 2.9920 76.00MM
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Dia Deep 8.0x Dia
