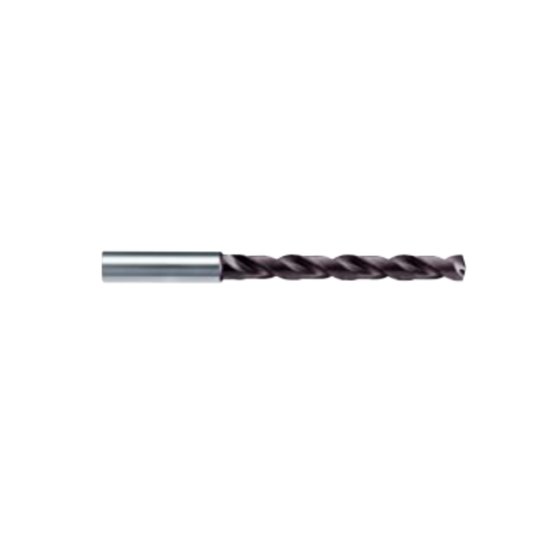

Picture of HAM TFR292-0465 TA-C 4.65mm 8XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR292-0465 TA-C 4.65mm 8XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR292-0465 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127379
Vendor: Sussex Tool and Supply
$152.60
HAM 292-0465 TA-C Carbide Drill Shank 0.2362 TA-C 0.1831 4.65MM Drill Dia 1.6930 43.00MM 8.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.2362 6.00MM
Overall Length 3.1890 81.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1831 4.65MM
Type Of Tool Drill
Included Angle 140°
Flute Length 1.6930 43.00MM
Cut Dia Min 0.1831 4.65MM
Dia Deep 8.0x Dia
