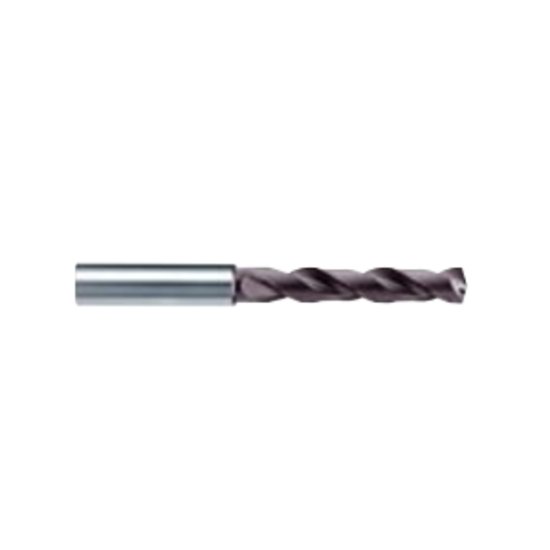

Picture of HAM TFR286-0870 TA-C 8.70mm 5XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR286-0870 TA-C 8.70mm 5XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR286-0870 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127247
Vendor: Sussex Tool and Supply
$125.40
HAM 286-0870 TA-C Carbide Drill Shank 0.3937 TA-C 0.3386 8.60MM Drill Dia 2.4020 61.01MM 5.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.3937 10.00MM
Overall Length 4.0551 103.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3386 8.60MM
Type Of Tool Drill
Included Angle 140°
Flute Length 2.4020 61.01MM
Cut Dia Min 0.3386 8.60MM
Dia Deep 5.0x Dia
