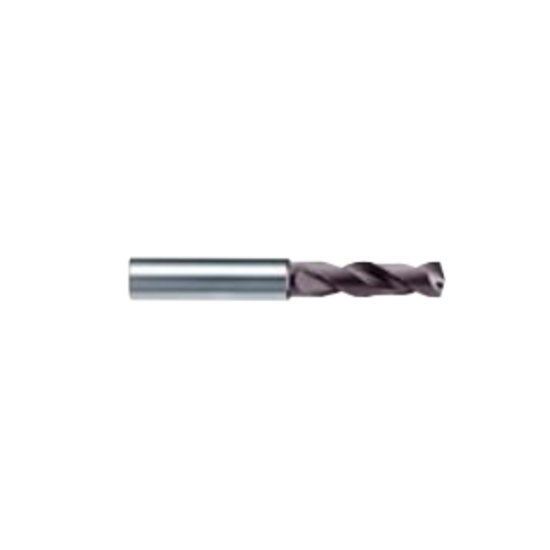

Picture of HAM TFR285-2200 TA-C 22.00mm 3XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR285-2200 TA-C 22.00mm 3XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR285-2200 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127171
Vendor: Sussex Tool and Supply
$639.05
HAM 285-2200 TA-C Carbide Drill Shank 0.9843 TA-C 0.8661 22.00MM Drill Dia 4.1340 105.00MM 3.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.9843 25.00MM
Overall Length 6.4961 165.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Tool Dia 0.8661 22.00MM
Type Of Tool Drill
Included Angle 140°
Flute Length 4.1340 105.00MM
Cut Dia Min 0.8661 22.00MM
Dia Deep 3.0x Dia
