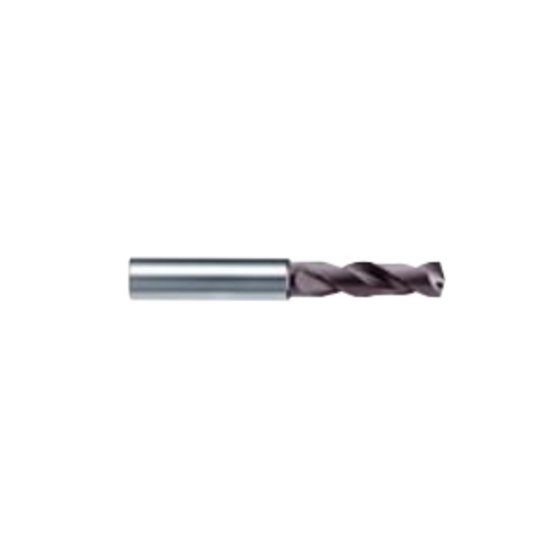

Picture of HAM TFR285-0920 TA-C 9.20mm 3XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR285-0920 TA-C 9.20mm 3XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR285-0920 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127070
Vendor: Sussex Tool and Supply
$116.80
HAM 285-0920 TA-C Carbide Drill Shank 0.3937 TA-C 0.3594 9.13MM - 23/64Drill Dia 1.8500 46.99MM 3.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.3937 10.00MM
Overall Length 3.5039 89.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3594 9.13MM - 23/64
Type Of Tool Drill
Included Angle 140°
Flute Length 1.8500 46.99MM
Cut Dia Min 0.3594 9.13MM - 23/64
Dia Deep 3.0x Dia
