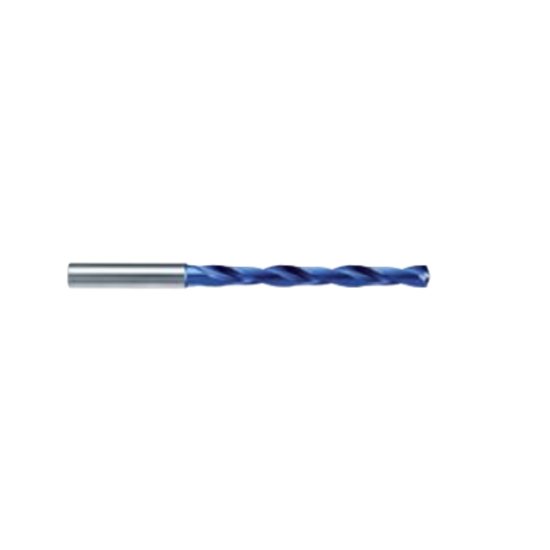

Picture of HAM TFR271-0365 TA-CN 3.65mm 8XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

HAM TFR271-0365 TA-CN 3.65mm 8XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

Part Number: TFR271-0365 TA-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1128127
Vendor: Sussex Tool and Supply
$152.60
HAM 271-0365 TA-CN Carbide Drill Shank 0.2362 TA-CN 0.1437 3.65MM Drill Dia 1.3390 34.01MM 8.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Stainless Steel, High Temp
Coating TA-CN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.8346 72.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1437 3.65MM
Type Of Tool Drill
Included Angle 140°
Flute Length 1.3390 34.01MM
Cut Dia Min 0.1437 3.65MM
Dia Deep 8.0x Dia
