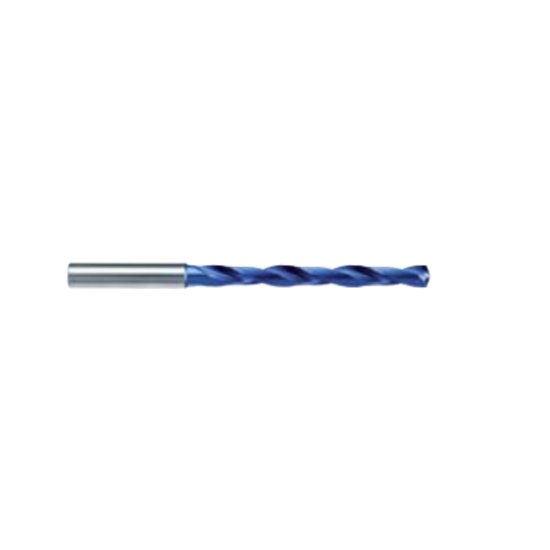

Picture of HAM TFR271-0230 TA-CN 2.30mm 8XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

HAM TFR271-0230 TA-CN 2.30mm 8XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

Part Number: TFR271-0230 TA-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1128109
Vendor: Sussex Tool and Supply
$152.60
HAM 271-0230 TA-CN Carbide Drill Shank 0.1574 TA-CN 0.0906 2.30MM Drill Dia 0.5910 15.01MM 8.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Stainless Steel, High Temp
Coating TA-CN
Mach Side Connection Size 0.1575 4.00MM
Overall Length 2.1654 55.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0906 2.30MM
Type Of Tool Drill
Included Angle 140°
Flute Length 0.5910 15.01MM
Cut Dia Min 0.0906 2.30MM
Dia Deep 8.0x Dia
Only registered users can write reviews
