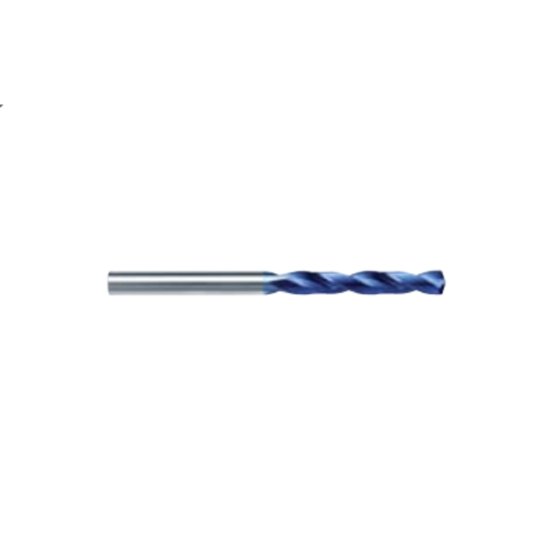

Picture of HAM TFR270-0675 TA-CN 17/64" 5XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

HAM TFR270-0675 TA-CN 17/64" 5XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

Part Number: TFR270-0675 TA-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127975
Vendor: Sussex Tool and Supply
$109.65
HAM 270-0675 TA-CN Carbide Drill Shank 0.3150 TA-CN 0.2656 6.75MM - 17/64Drill Dia 2.0870 53.01MM 5.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Stainless Steel, High Temp
Coating TA-CN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 3.5827 91.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2656 6.75MM - 17/64
Type Of Tool Drill
Included Angle 140°
Flute Length 2.0870 53.01MM
Cut Dia Min 0.2656 6.75MM - 17/64
Dia Deep 5.0x Dia
