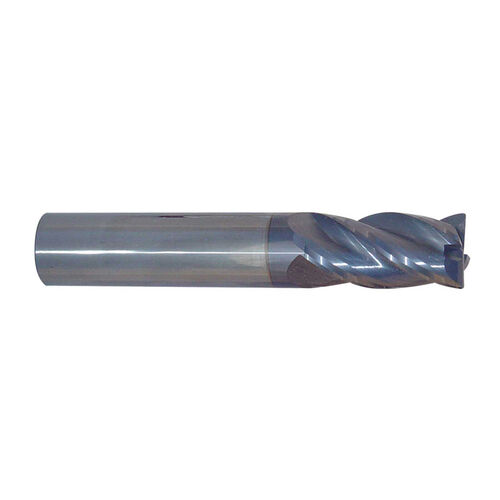

Picture of GS Tooling 153043 1-1/4" Diax1-1/4" 0.030-0.035"

GS Tooling 153043 1-1/4" Diax1-1/4" 0.030-0.035"

Part Number: SOW153043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GS TOOLING
SKU: 1398415
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
Carbide AlTiN coating provides exceptional oxidation resistance and extreme hardness. That's why this coating works well in very demanding cutting tool applications, especially when tools are being pushed to the max.
Products specifications
Attribute name Attribute value
Shipping State Ontario
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Coating ALTIN
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool Bull Nose Endmill
Length Of Cut 2.2500 57.15MM
End Of Tool Shape CORNER RADIUS
Single/Double End Single End
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Flute Length 1.2500 31.75MM
Hand Right Hand
