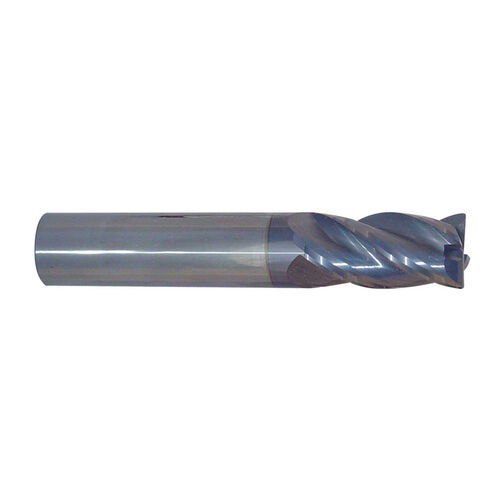

Picture of GS Tooling 153030 5/8" Diax5/8" 0.030-0.035" Rad End Mill

GS Tooling 153030 5/8" Diax5/8" 0.030-0.035" Rad End Mill

Part Number: SOW153030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GS TOOLING
SKU: 1398407
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
Carbide AlTiN coating provides exceptional oxidation resistance and extreme hardness. That's why this coating works well in very demanding cutting tool applications, especially when tools are being pushed to the max.
Products specifications
Attribute name Attribute value
Shipping State Ontario
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM - 5/8
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Type Of Tool Bull Nose Endmill
Length Of Cut 0.7500 19.05MM
End Of Tool Shape CORNER RADIUS
Single/Double End Single End
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Flute Length 0.6250 15.88MM
Hand Right Hand
