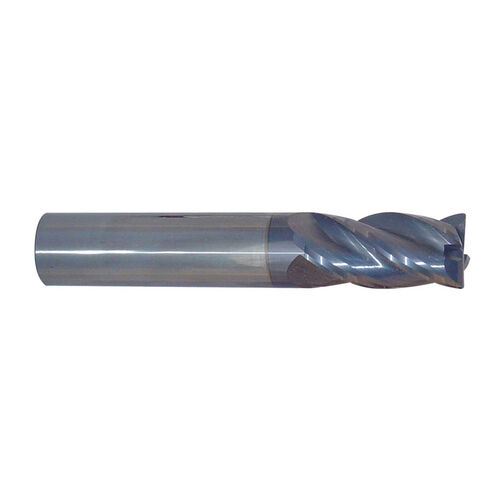

Picture of GS Tooling 153014 5/16" Diax5/16" 0.015-0.020" Rad Mill

GS Tooling 153014 5/16" Diax5/16" 0.015-0.020" Rad Mill

Part Number: SOW153014
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$45.34
SKU: 1398398

Description

GS Tooling 153014 5/16" Diax5/16" 0.015-0.020" Rad Mill
Products specifications
Attribute name Attribute value
General Information
Shipping State Ontario
Made In USA NO
Cutter Type Solid End Mill
Type Of Tool Bull Nose Endmill
End Of Tool Shape CORNER RADIUS
Single/Double End Single End
Hand Right Hand
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Length Of Cut 1.1250 28.58MM
Flute Length 0.3125 7.94MM
Flutes/Inserts 4
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Tool Dia 0.3125 7.94MM - 5/16
Geometry & Angles
Corner Radius 0.0150 0.38MM - 0.0200 0.51MM
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
