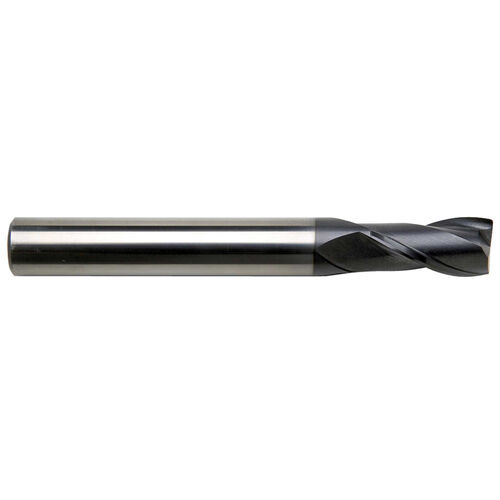

Picture of GS Tooling 102640 1/2" Diax1/2" 0.060" Radius End Mill

GS Tooling 102640 1/2" Diax1/2" 0.060" Radius End Mill

Part Number: SOW102640

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GS TOOLING
SKU: 1398377
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
Carbide AlTiN coating provides exceptional oxidation resistance and extreme hardness. That's why this coating works well in very demanding cutting tool applications, especially when tools are being pushed to the max.
Products specifications
Attribute name Attribute value
Shipping State Ontario
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM - 1/2
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Bull Nose Endmill
Length Of Cut 1.0000 25.40MM
End Of Tool Shape CORNER RADIUS
Single/Double End Single End
Corner Radius 0.0591 1.50MM
Flute Length 0.5000 12.70MM
Hand Right Hand
