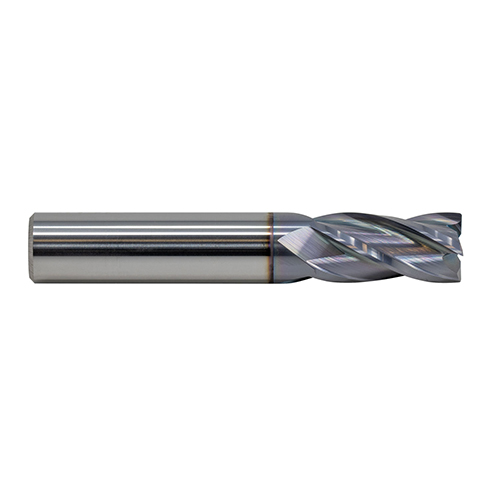

Picture of GS Tooling 101898 3/4 4-Flute 0.020 Radius End Mill

GS Tooling 101898 3/4 4-Flute 0.020 Radius End Mill

Part Number: SOW101898
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1398324
Vendor: Sussex Tool and Supply
$247.33

Description

Carbide TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ontario
Made In USA NO
Cutter Type Solid End Mill
Type Of Tool Bull Nose Endmill
End Of Tool Shape CORNER RADIUS
Single/Double End Single End
Hand Right Hand
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Flute Length 0.7500 19.05MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
