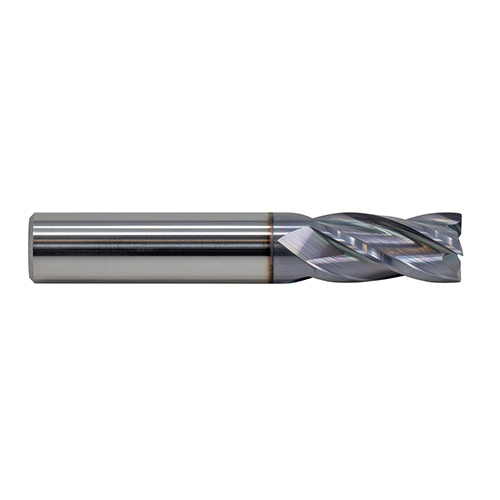

Picture of GS Tooling 101833 1/8 4-Flute 0.015 Radius End Mill

GS Tooling 101833 1/8 4-Flute 0.015 Radius End Mill

Part Number: SOW101833

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GS TOOLING
SKU: 1398303
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
Carbide TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
Shipping State Ontario
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Coating TiAlN
Mach Side Connection Size 0.1250 3.18MM - 1/8
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.1250 3.18MM - 1/8
Type Of Tool Bull Nose Endmill
Length Of Cut 0.5000 12.70MM
End Of Tool Shape CORNER RADIUS
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Flute Length 0.1250 3.18MM
Hand Right Hand
