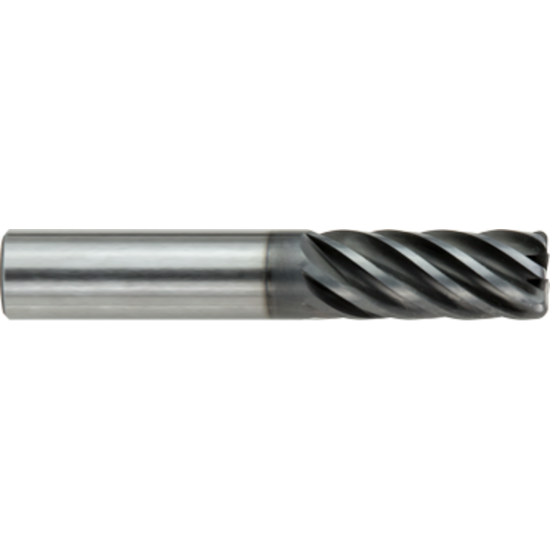

GORILLA MILL GMHT38RS7090 DIA 3/8" SH 0.3750 LOC 0.6250 OAL 2.00 End Mill Standard Flute Variable Helix Carbide TiAlN Single End Corner Radius 0.0900 2.29MM BABOON

ISO: GMHT38RS7090

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR30417
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Side Milling, Copy Milling, Face Milling
Made In USA Yes
Coating TiAlN
Shipping State Wisconsin
Performance Rating High Performance
Package Size 1
Dimensional Specifications
End Of Tool Shape Corner Radius
Length Type Stub
Helix Angle Variable
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Length Of Cut 0.6250 15.88MM
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.0000 50.80MM
Corner Radius 0.0900 2.29MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 7
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
