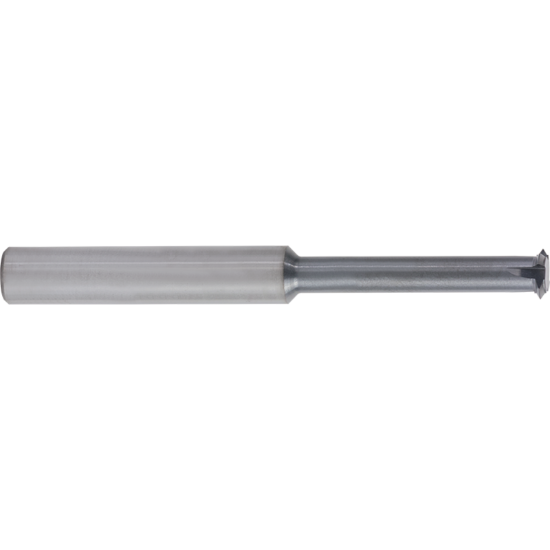

GORILLA MILL GMDTTM916-12UN4FL Carbide Thread Mill 9/16" 12.00TPI UN TIALN LOC 4.0000 101.60MM OAL

ISO: GMDTTM916-12UN4FL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90014
Delivery date: 3-5 days
$150.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Thread Milling
Shipping State Illinois
Coating TiAlN
Made In USA Yes
Dimensional Specifications
Thread Size 9/16"
Thread Type UN
Cutter Dia 0.4060 10.31MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Thread Mill
Thread Pitch 12.00TPI
Neck Length 1.7720 45.01MM
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
