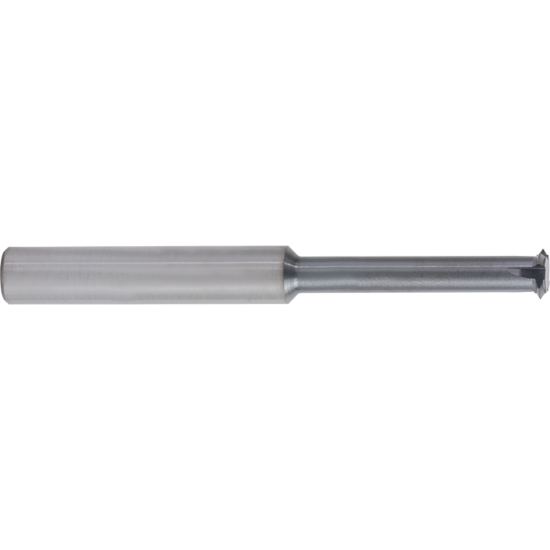

GORILLA MILL GMDTTM58-18UN4FL Carbide Thread Mill 5/8" 18.00TPI UN TIALN LOC 4.0000 101.60MM OAL

ISO: GMDTTM58-18UN4FL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90011
Delivery date: 3-5 days
$150.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiAlN
Shipping State Illinois
Application Thread Milling
Made In USA Yes
Dimensional Specifications
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Pitch 18.00TPI
Machine Side Connection Size 0.6250 15.88MM
Thread Type UN
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.5040 12.80MM
Neck Length 1.9690 50.01MM
Cutter Style Carbide Thread Mill
Thread Size 5/8"
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
