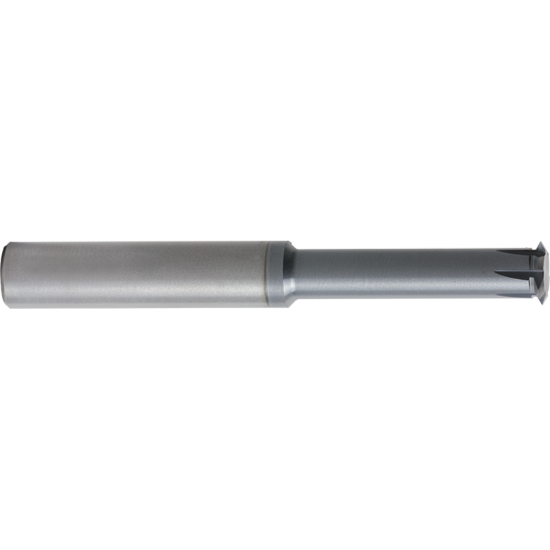

GORILLA MILL GMDTTM34-16UN5FL Carbide Thread Mill Helical 3/4" 16.00TPI UN TIALN LOC 5.0000 127.00MM OAL

ISO: GMDTTM34-16UN5FL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90005
Delivery date: 3-5 days
$178.23

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Application Thread Milling
Shipping State Illinois
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.6100 15.49MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Style Carbide Thread Mill
Thread Pitch 16.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6250 15.88MM
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Neck Length 2.3620 59.99MM
Overall Len 5.0000 127.00MM
Helix Angle 28°
Thread Size 3/4"
Thread Type UN
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
