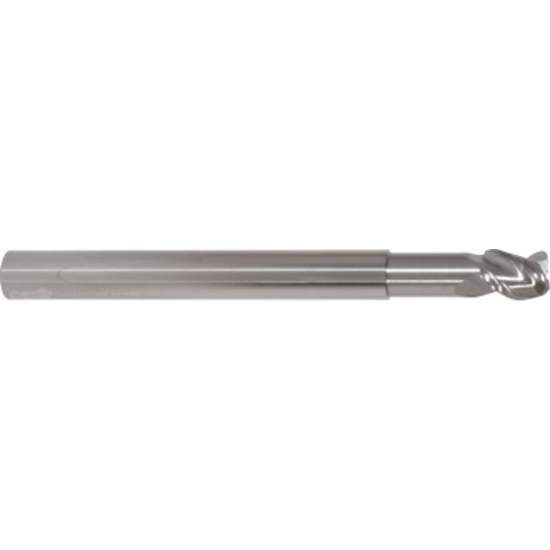

GORILLA MILL GMANR58R31201.625 DIA 5/8" SH 0.6250 LOC 0.7500 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.1200 3.05MM SILVERBack

ISO: GMANR58R31201.625

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20322
Delivery date: 3-5 days
$150.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State Wisconsin
Dimensional Specifications
Overall Len 4.0000 101.60MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Neck Length 1.6250 41.28MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Length Of Cut 0.7500 19.05MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Corner Radius 0.1200 3.05MM
Length Type Standard / With Neck
Cutter Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
