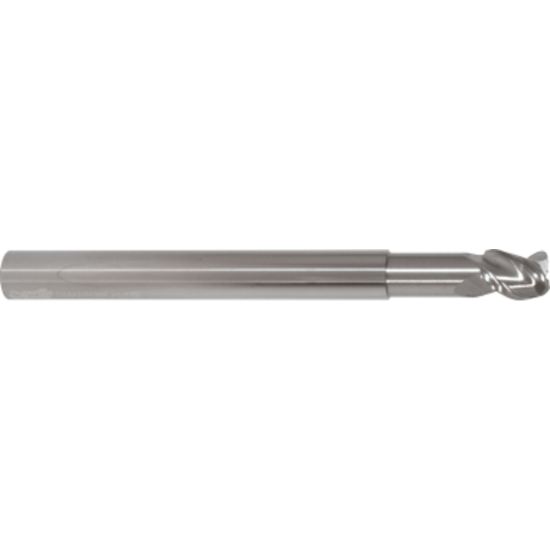

GORILLA MILL GMANR38R30901.125 DIA 3/8" SH 0.3750 LOC 0.50 OAL 3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0900 2.29MM SILVERBack

ISO: GMANR38R30901.125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20308
Delivery date: 3-5 days
$58.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating High Performance
Shipping State Wisconsin
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Single/Double End Single End
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Corner Radius 0.0900 2.29MM
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Neck Length 1.1250 28.58MM
Overall Len 3.0000 76.20MM
Length Of Cut 0.5000 12.70MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
