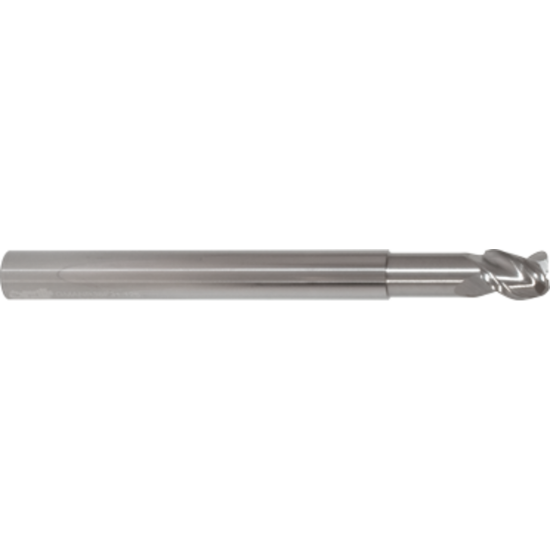

GORILLA MILL GMANR14F31.125 DIA 1/4" SH 0.2500 LOC 0.3750 OAL 3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Square Sharp SILVERBack

ISO: GMANR14F31.125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20265
Delivery date: 3-5 days
$39.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Shipping State Wisconsin
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Neck Length 1.1250 28.58MM
Overall Len 3.0000 76.20MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Helix Angle Variable
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
