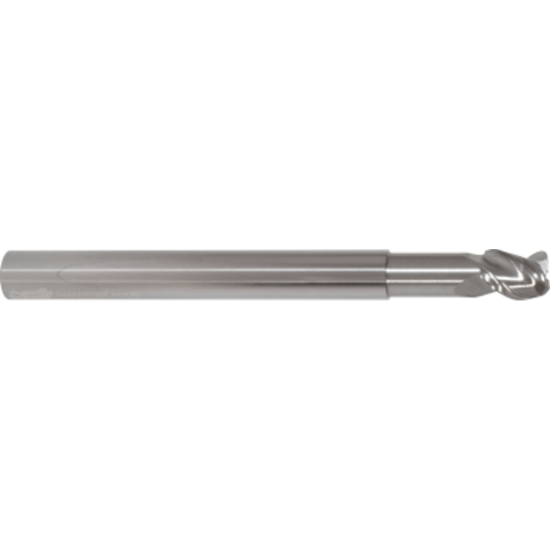

GORILLA MILL GMANR12R31204.250 DIA 1/2" SH 0.50 LOC 0.5625 OAL 6.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.1200 3.05MM SILVERBack

ISO: GMANR12R31204.250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20263
Delivery date: 3-5 days
$131.92

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Application Slot Milling, Face Milling, Profile Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Corner Radius 0.1200 3.05MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Neck Length 4.2500 107.95MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.5625 14.29MM
Inch/Metric Inch
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
