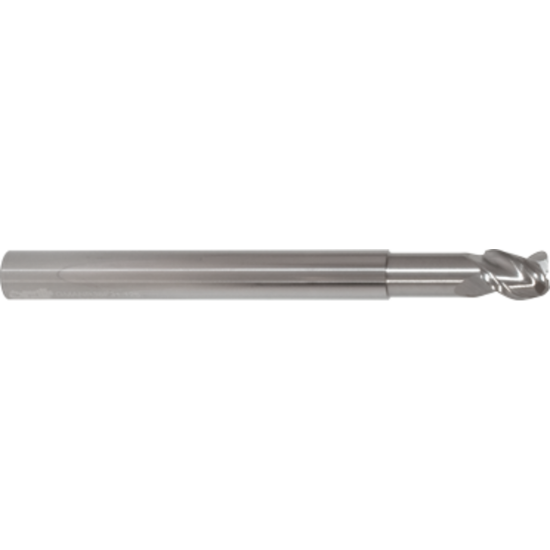

GORILLA MILL GMANR12R30902.250 DIA 1/2" SH 0.50 LOC 0.5625 OAL 5.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0900 2.29MM SILVERBack

ISO: GMANR12R30902.250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20257
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Package Size 1
Shipping State Wisconsin
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
Length Of Cut 0.5625 14.29MM
Cutter Dia 0.5000 12.70MM - 1/2
Corner Radius 0.0900 2.29MM
Neck Length 2.2500 57.15MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
