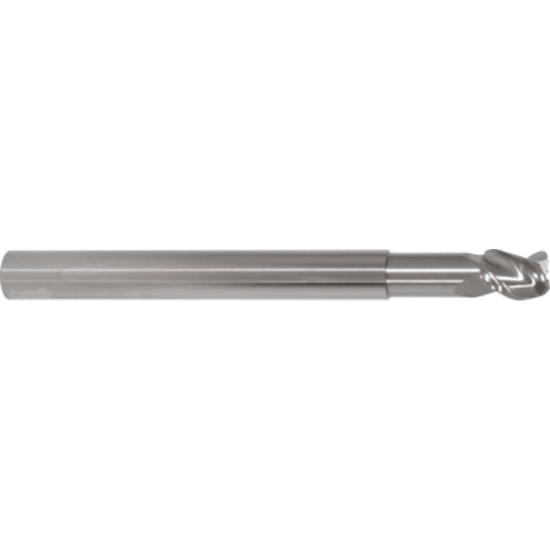

GORILLA MILL GMANR12R30302.250 DIA 1/2" SH 0.50 LOC 0.5625 OAL 5.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM SILVERBack

ISO: GMANR12R30302.250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20249
Delivery date: 3-5 days
$92.82

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Application Profile Milling, Slot Milling, Side Milling, Copy Milling, Face Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Overall Len 5.0000 127.00MM
Cut Rating Aluminum, Graphite, Plastic
Neck Length 2.2500 57.15MM
Length Of Cut 0.5625 14.29MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
