  • GORILLA MILL GMANR12R30301.500ZrN DIA 1/2" SH 0.50 LOC 0.5625 OAL 5.00 End Mill Standard Flute Variable Helix Carbide ZrN Single End Corner Radius 0.0300 0.76MM SILVERBack

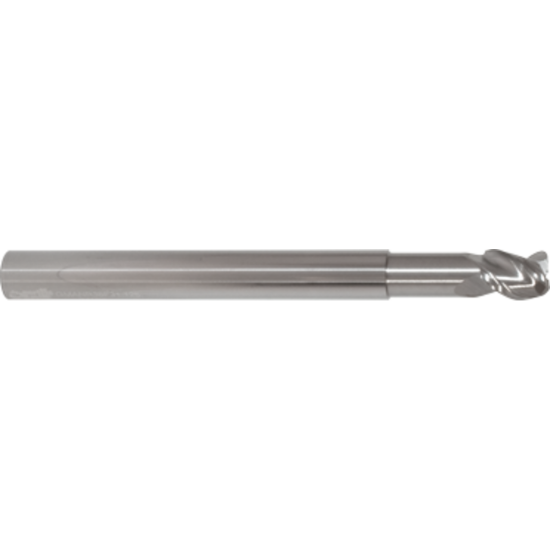

Picture of GORILLA MILL GMANR12R30301.500ZrN DIA 1/2" SH 0.50 LOC 0.5625 OAL 5.00 End Mill Standard Flute Variable Helix Carbide ZrN Single End Corner Radius 0.0300 0.76MM SILVERBack

GORILLA MILL GMANR12R30301.500ZrN DIA 1/2" SH 0.50 LOC 0.5625 OAL 5.00 End Mill Standard Flute Variable Helix Carbide ZrN Single End Corner Radius 0.0300 0.76MM SILVERBack

ISO: GMANR12R30301.500ZrN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20531
Delivery date: 3-5 days
$89.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Used for Aluminum and other non-ferrous materials

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Wisconsin
Application Side Milling, Profile Milling, Slot Milling, Face Milling, Copy Milling
Coating ZrN
Made In USA Yes
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Length Of Cut 0.5625 14.29MM
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Overall Len 5.0000 127.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Corner Radius 0.0300 0.76MM
Neck Length 1.5000 38.10MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
