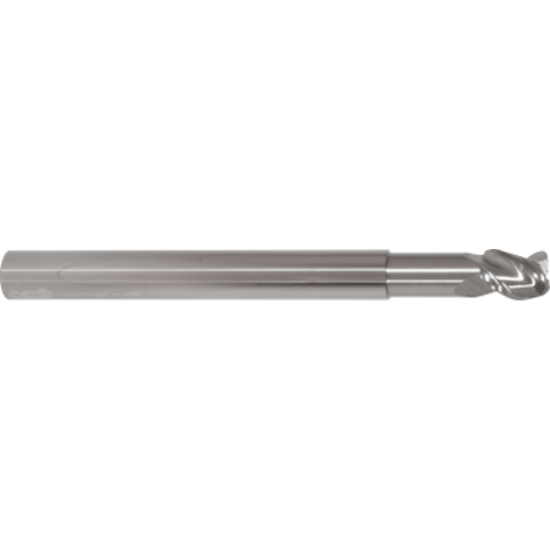

GORILLA MILL GMANR10R31203.250 DIA 1" SH 1.00 LOC 1.1250 OAL 6.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.1200 3.05MM SILVERBack

ISO: GMANR10R31203.250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20234
Delivery date: 3-5 days
$375.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.1200 3.05MM
Cutter Dia 1.0000 25.40MM
Neck Length 3.2500 82.55MM
Length Type Standard / With Neck
Length Of Cut 1.1250 28.58MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Overall Len 6.0000 152.40MM
Single/Double End Single End
End Of Tool Shape Corner Radius
Helix Angle Variable
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
