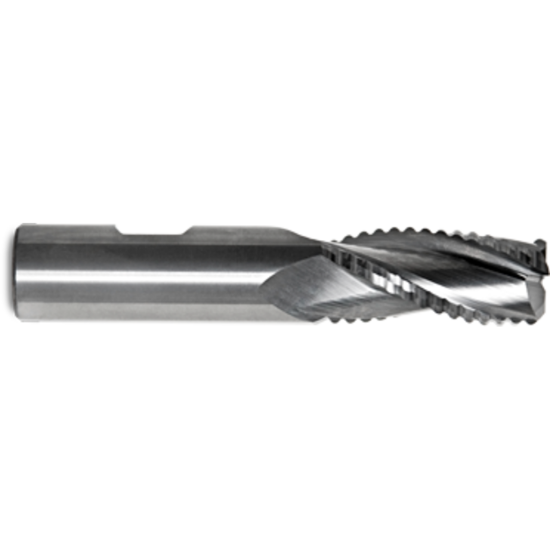

GORILLA MILL GMAKD58CS3 DIA 5/8" SH 0.6250 LOC 0.8750 OAL 3.50 End Mill Carbide Uncoated Single End Square Sharp SILVERBack KNUCKLE DRAGGER

ISO: GMAKD58CS3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR50028
Delivery date: 3-5 days
$172.76

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Package Size 1
Application Face Milling, Side Milling
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Length Of Cut 0.8750 22.23MM
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Helix Angle Variable
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.6250 15.88MM - 5/8
Length Type Stub
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Carbide Rougher
Inch/Metric Inch
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
