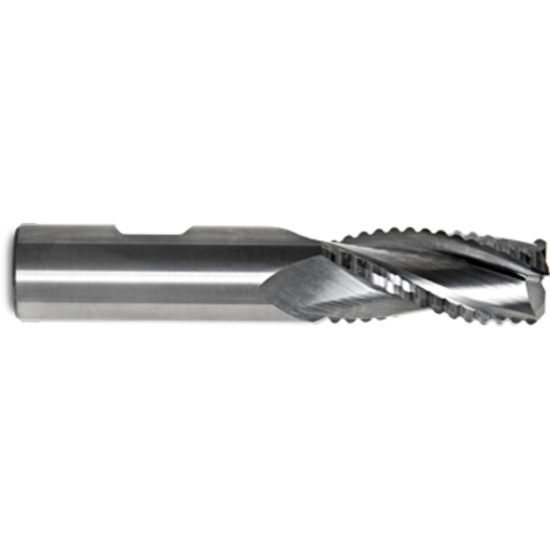

GORILLA MILL GMAKD38CS3 DIA 3/8" SH 0.3750 LOC 0.5625 OAL 2.00 End Mill Carbide Uncoated Single End 45.0° Chamfer SILVERBack KNUCKLE DRAGGER

ISO: GMAKD38CS3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR50026
Delivery date: 3-5 days
$77.85

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State Wisconsin
Dimensional Specifications
End Of Tool Shape Corner Chamfer
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Length Of Cut 0.5625 14.29MM
Cutter Style Carbide Rougher
Cutter Dia 0.3750 9.53MM - 3/8
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.0000 50.80MM
Length Type Stub
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
