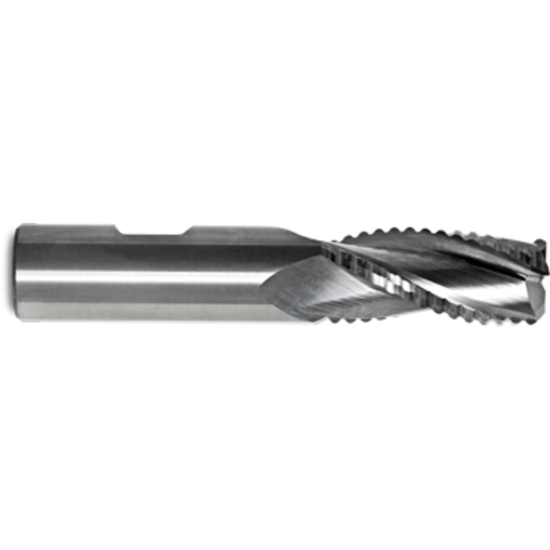

GORILLA MILL GMAKD34CS3 DIA 3/4" SH 0.7500 LOC 1.00 OAL 4.00 End Mill Carbide Uncoated Single End 45.0° Chamfer SILVERBack KNUCKLE DRAGGER

ISO: GMAKD34CS3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR50024
Delivery date: 3-5 days
$190.85

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Package Size 1
Performance Rating High Performance
Application Face Milling, Side Milling
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Chamfer
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Carbide Rougher
Inch/Metric Inch
Single/Double End Single End
Helix Angle Variable
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Length Type Stub
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
