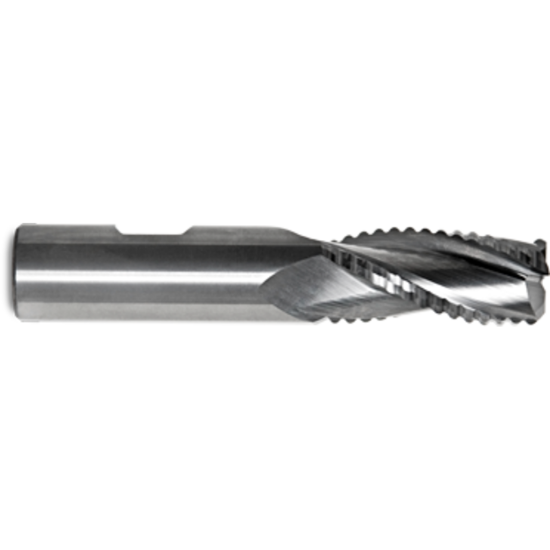

GORILLA MILL GMAKD2000MMC3 DIA 20MM SH 0.7874 LOC 1.4961 OAL 3.9370 End Mill Carbide Uncoated Single End 45.0° Chamfer SILVERBack KNUCKLE DRAGGER

ISO: GMAKD2000MMC3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR50018
Delivery date: 3-5 days
$225.03

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Wisconsin
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Single/Double End Single End
Overall Len 3.9370 100.00MM
Machine Side Connection Type Weldon
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Shank/Pilot Dia 0.7874 20.00MM
Helix Angle Variable
Flutes/Inserts 3
Cutter Style Carbide Rougher
Cutter Dia 0.7874 20.00MM
End Of Tool Shape Corner Chamfer
Length Type Standard
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Automotive Yes
