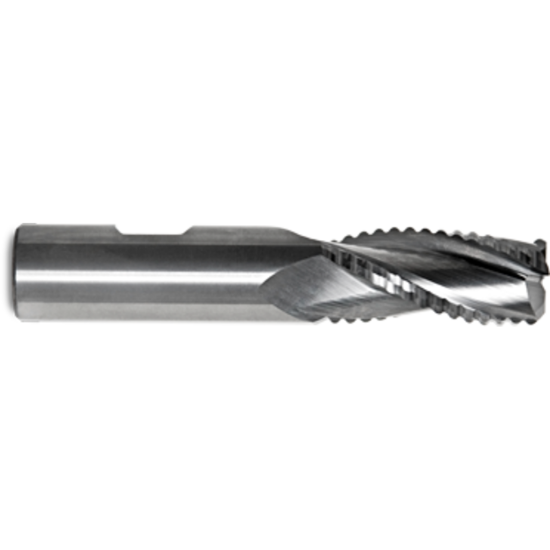

GORILLA MILL GMAKD1000MMCL3 DIA 10MM SH 0.3937 LOC 1.5748 OAL 3.9370 End Mill Carbide Uncoated Single End 45.0° Chamfer SILVERBack KNUCKLE DRAGGER

ISO: GMAKD1000MMCL3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR50006
Delivery date: 3-5 days
$115.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Wisconsin
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.3937 10.00MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3937 10.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Overall Len 3.9370 100.00MM
Length Type Standard
Single/Double End Single End
Length Of Cut 1.5748 40.00MM
Helix Angle Variable
Flutes/Inserts 3
Cutter Style Carbide Rougher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Agricultural YES
Energy Yes
