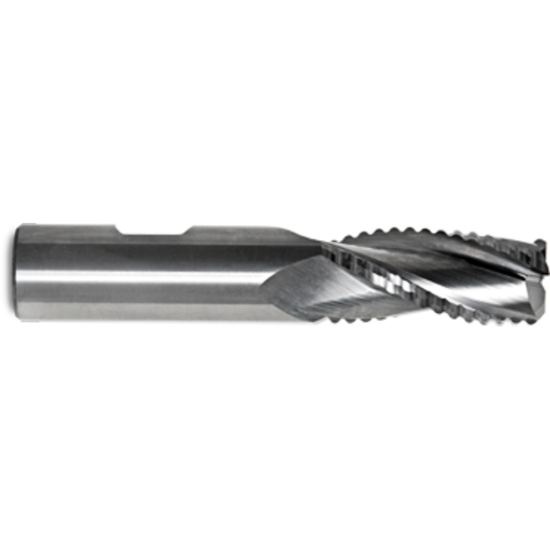

GORILLA MILL GMAKD0800MMCS3 DIA 8MM SH 0.3150 LOC 0.4724 OAL 1.9685 End Mill Carbide Uncoated Single End 45.0° Chamfer SILVERBack KNUCKLE DRAGGER

ISO: GMAKD0800MMCS3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR50004
Delivery date: 3-5 days
$72.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Shipping State Wisconsin
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Helix Angle Variable
Length Type Stub
Tool Material Carbide
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 1.9685 50.00MM
Length Of Cut 0.4724 12.00MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
Cutter Style Carbide Rougher
Flutes/Inserts 3
Cutter Dia 0.3150 8.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Energy Yes
Automotive Yes
Job Shop Yes
Agricultural YES
