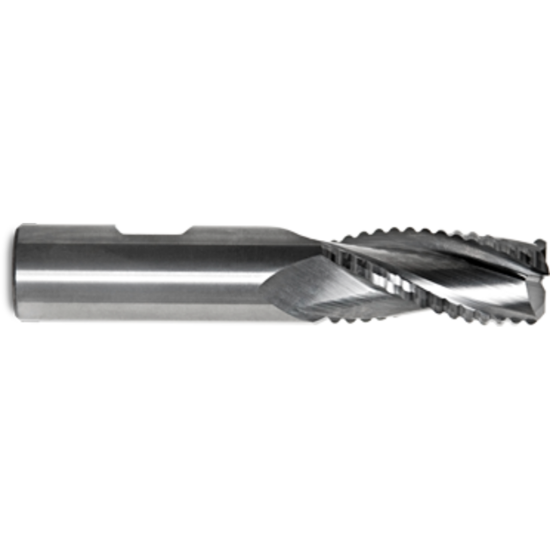

GORILLA MILL GMAKD0800MMC3 DIA 8MM SH 0.3150 LOC 0.8661 OAL 2.5591 End Mill Carbide Uncoated Single End 45.0° Chamfer SILVERBack KNUCKLE DRAGGER

ISO: GMAKD0800MMC3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR50002
Delivery date: 3-5 days
$76.26

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling
Made In USA Yes
Shipping State Wisconsin
Package Size 1
Dimensional Specifications
Overall Len 2.5591 65.00MM
Flutes/Inserts 3
Cutter Style Carbide Rougher
Helix Angle Variable
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3150 8.00MM
Length Of Cut 0.8660 22.00MM
Length Type Standard
Cutter Dia 0.3150 8.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
