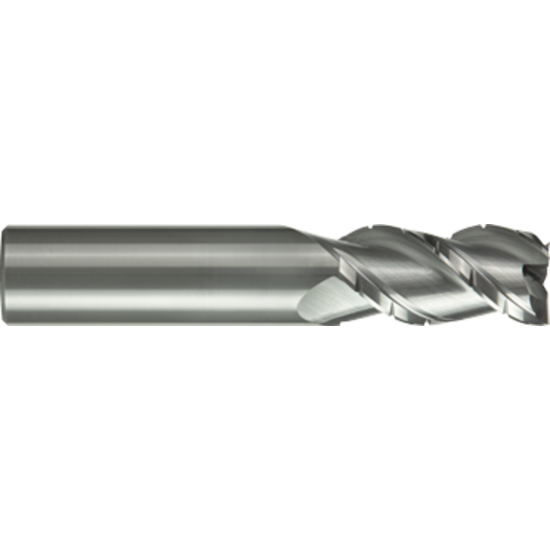

GORILLA MILL GMACB58FL3 DIA 5/8" SH 0.6250 LOC 2.00 OAL 4.00 End Mill Carbide Uncoated Single End Square Sharp SILVERBack CHIMPBREAKER

ISO: GMACB58FL3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20901
Delivery date: 3-5 days
$108.42

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA Yes
Application Side Milling, Face Milling, Slot Milling
Shipping State Wisconsin
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
End Of Tool Shape Square
Cutter Style Carbide Rougher
Inch/Metric Inch
Overall Len 4.0000 101.60MM
Length Of Cut 2.0000 50.80MM
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Helix Angle Variable
Length Type Long
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
