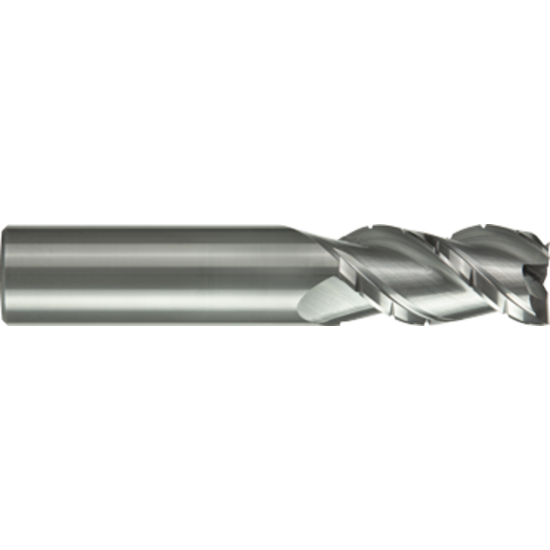

GORILLA MILL GMACB38RHL3060 DIA 3/8" SH 0.3750 LOC 1.00 OAL 2.50 End Mill Carbide Uncoated Single End Corner Radius 0.0600 1.52MM SILVERBack CHIMPBREAKER

ISO: GMACB38RHL3060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20869
Delivery date: 3-5 days
$37.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0600 1.52MM
Machine Side Connection Size 0.3750 9.53MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Overall Len 2.5000 63.50MM
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutter Dia 0.3750 9.53MM - 3/8
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Length Type Long
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Job Shop Yes
Mold Yes
