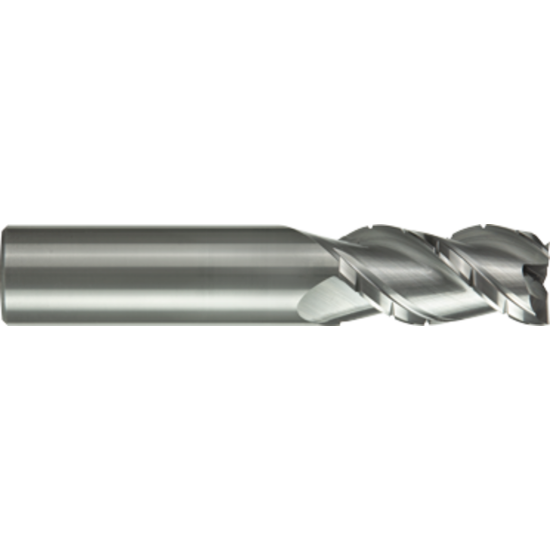

GORILLA MILL GMACB34FLH3 DIA 3/4" SH 0.7500 LOC 2.2500 OAL 5.00 End Mill Carbide Uncoated Single End Square Sharp SILVERBack CHIMPBREAKER

ISO: GMACB34FLH3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20809
Delivery date: 3-5 days
$200.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Wisconsin
Application Slot Milling, Side Milling, Face Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Length Type Long
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Helix Angle Variable
Overall Len 5.0000 127.00MM
Length Of Cut 2.2500 57.15MM
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Style Carbide Rougher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
