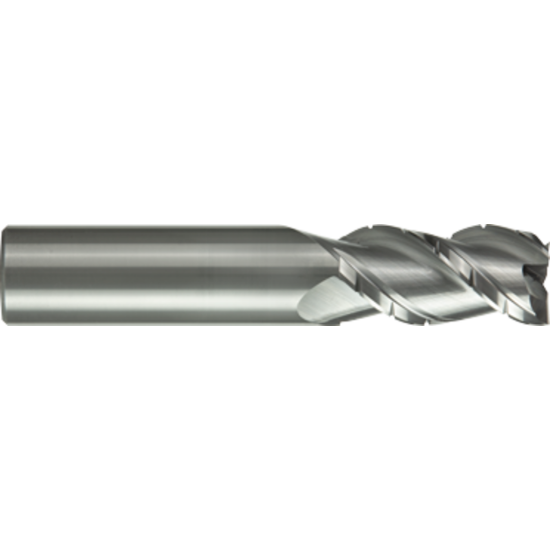

GORILLA MILL GMACB34FL3 DIA 3/4" SH 0.7500 LOC 2.00 OAL 4.00 End Mill Carbide Uncoated Single End Square Sharp SILVERBack CHIMPBREAKER

ISO: GMACB34FL3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR20807
Delivery date: 3-5 days
$177.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Shipping State Wisconsin
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Cylindrical
Length Of Cut 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Single/Double End Single End
Helix Angle Variable
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Type Long
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Rougher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
